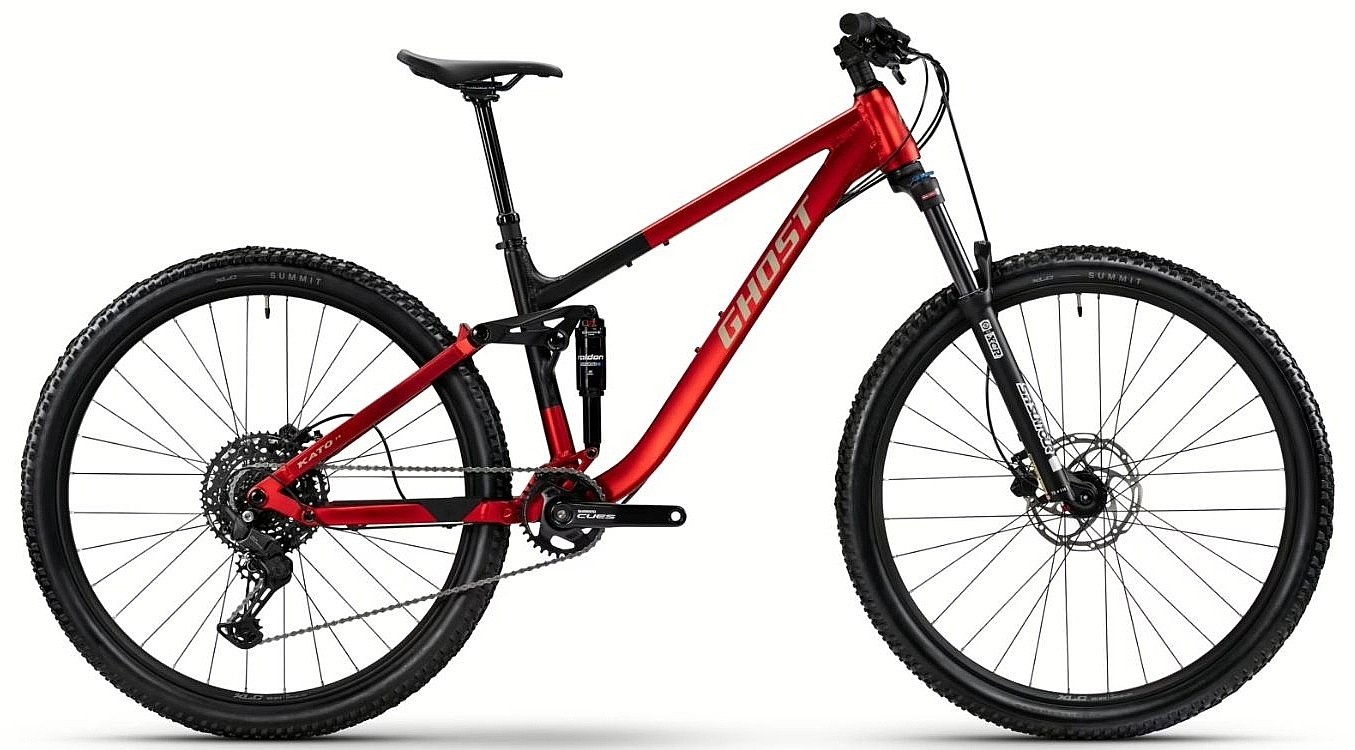

The Ghost Kato FS 29" full-suspension bike is a modern trail bike designed for versatile off-road use and longer rides. Thanks to its balanced geometry, it offers confidence on descents and efficiency on climbs. The frame, made of high-quality aluminum alloy, is combined with 130 mm of travel front and rear, ensuring comfort and stability even in more demanding terrain. The frame geometry provides a comfortable riding position without compromising the bike’s agility.
Technical Specifications
- Year: 2026
- Wheel size: 29”
- material: aluminum
- frame: aluminum, Boost 110/148, Travel: 130 mm
- fork: SR Suntour XCR34-Boost AIR 2CR DS 15AH2-110 130 mm
- front travel: 130 mm
- Rear shock: SR Suntour Raidon R 210x50mm, Hardware: 30x8
- Rear travel: 130 mm
- Headset: Glory Wheel Strummer Headset, 1SI11015Z ZS44/ZS56, Semi-Integrated
- Rear derailleur: Shimano CUES RD-U6000 10/11s, Shadow+, 10-speed
- Shifters: Shimano CUES SL-U6000-10R, Rapidfire+, Trigger shifter
- Gear ratio: 1x10
- Cassette: Shimano CUES CS-LG300-10, HG, 11-48T
- Chain: Shimano CN-LG500 9-11s, LINKGLIDE
- Crankset: Shimano CUES FC-U4000-1, Dynamic Chain Engagement+, 32T
- brakes: Tektro HD-M535, 4-piston, resin pads, 180 mm
- brake levers: Tektro HD-M535-BL
- front hub: XLC HF-M55 Boost 15x110 mm, 32H, Centerlock
- Rear Hub: XLC HR-M15 Boost 12x148 mm, 32H, Centerlock, HG
- Rims: XLC WR-M19 Disc 25/622 32H 6.5 mm Valve
- Tires: XLC VT-M20 Summit, 57-622
- spokes: DT Swiss FACTORY 2.0
- seatpost: XLC Dropper SP-T21, Dia. 31.6 mm, Travel: 150 mm, L: 456 mm
- saddle: XLC SA-S10 143 mm Sport
- stem: XLC ST-M50, Dia. 31.8 mm, L: 50 mm, A-Head
- handlebars: XLC HB-M30, Dia. 31.8 mm, backsweep 9°, 760 mm
- grips: XLC GR-S60 Sport Grip
- pedals: XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- bottom bracket: Shimano Deore SM-BB52 68/73 mm, HOLLOWTECH II, BSA, BSA 73
- The manufacturer reserves the right to change or improve the design and components without prior notice.
